SERVICES

We believe that we are on the face of the earth to make great products and that’s not changing. We are constantly focusing on innovating.

End To End Solutions

We provide solutions towards sourcing, timely supplies, customer training, developing reference design and if need be to also market customer’s solution based on our product lines.

Machines

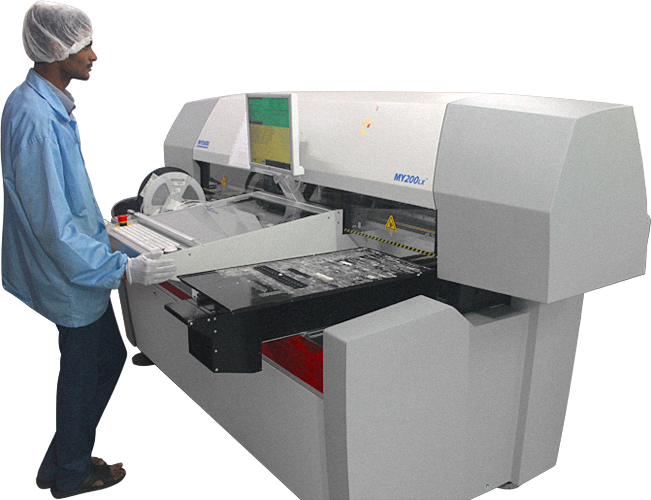

My Data Pick And Place Machine

Model:MY 200 LX 10 | Speed:16000 CPH | Feeder capacity:Upto 176

  • Fast set-ups and changeovers.
  • All-in-one platform.
  • High mix low/mid volume manufacturing.
  • Handling complex components – at higher speeds

Yamaha Pick And Place Machine

Model: YSM 20 | Speed: 90000 CPH PER MACHINE | Mounting Accuracy:±0.035mm (±0.025mm)
Cpk≥1.0 (3σ)

  • High volume production
  • Compatible with a multitude of components
  • Easy production changeovers
  • Inbuilt Barcode system for loading components
  • Feeder exchange carriage: Max. 128 types (8mm tape feeder conversion) Tray: 10 types (carriage type); up to 2 units can be installed

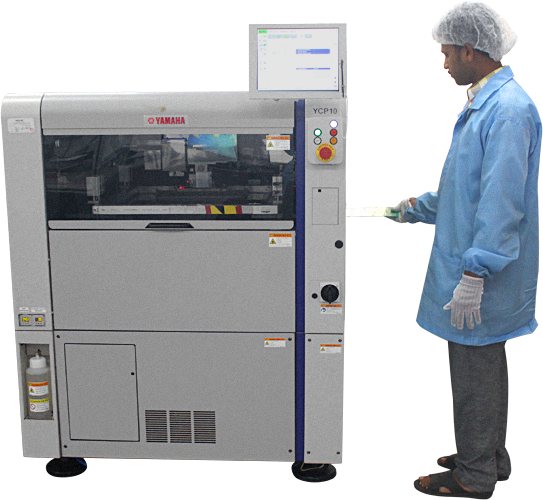

Fully Automatic Stencil Printer

Model: YCP 10

  • Repeatability is less than 2cpk
  • Printing quality similar to flag ship models, compatible with large circuit boards and a wide variety of stencil frames.
  • Built-in features from high-end machine models deliver high print accuracy and quality.
  • Multiple functions and extreme versatility all wrapped into 1 compact unit.
  • Support for Yamaha SMT production line network, delivers highly efficient production.
  • Inbuilt 2D solder paste inspection.

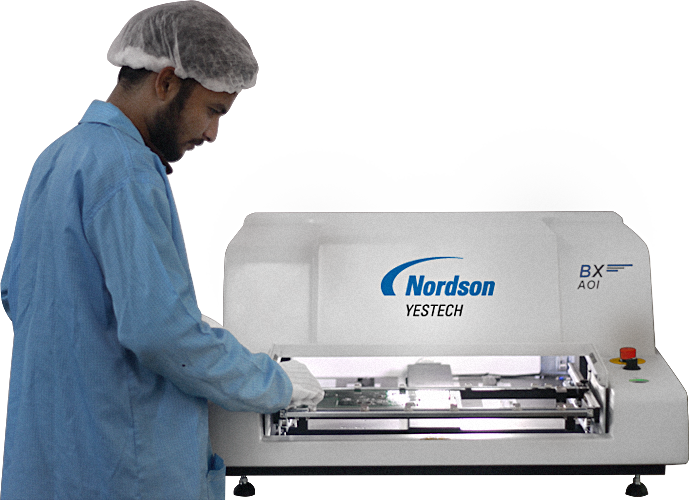

Yestech AOI

Model: BX -12

  • Benchtop Automated Optical Inspection (AOI) System with High Resolution
  • Adjustable PCB fixture w/YES Clamp and camera indexing head
  • Full defect coverage for PCB’s up to 18″x20″
  • Advanced Image Processing Technology
  • Yesvision PCM Inspection Software
  • 3D Fusion Lighting
  • 5 Megapixel CCD camera
  • Windows XP Pro Operating System
  • 22″ Flat Panel display

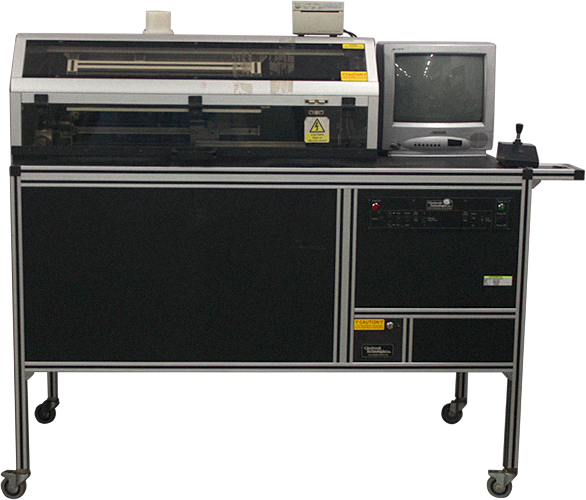

Glenbrook X-ray Machine

Model:RTX113HV

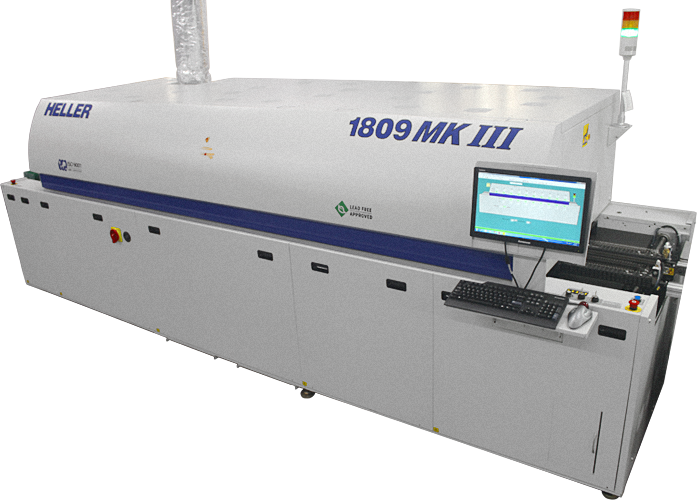

Heller Reflow Oven

Model:DH- A3

  • 9 Zone reflow oven
  • High volume production
  • Capable of ROHS process also

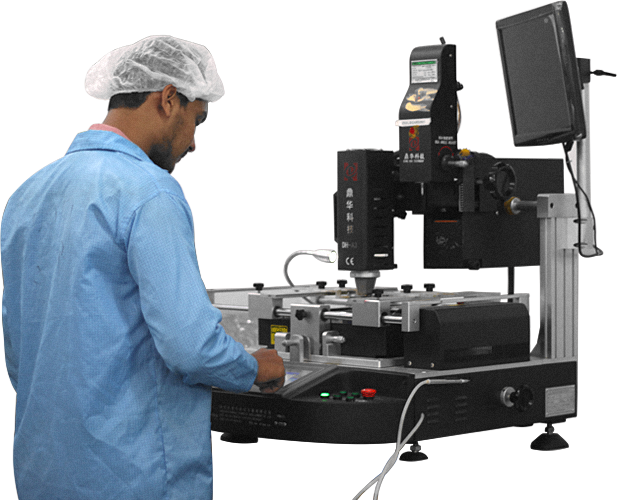

BGA Workstation

Model:DH- A3

  • Benchtop Automated Optical Inspection (AOI) System with High Resolution
  • Adjustable PCB fixture w/YES Clamp and camera indexing head
  • Full defect coverage for PCB’s up to 18″x20″
  • Advanced Image Processing Technology
  • Yesvision PCM Inspection Software
  • 3D Fusion Lighting
  • 5 Megapixel CCD camera
  • Windows XP Pro Operating System
  • 22″ Flat Panel display

Ultra Sonic Cleaner

Model: LEELASONIC-500

EPS Reflow Oven

  • 5 Zone reflow oven
  • Proto – Mid volume production
  • Capable of ROHS process also

And More!
